Retrieval Augmented Generation (RAG): A Real-World Scenario
Retrieval Augmented Generation (RAG) is a powerful AI technique that combines information retrieval with language generation. Instead of relying solely on pre-trained knowledge, RAG first retrieves relevant information from an external knowledge base and then uses a large language model (LLM) to generate accurate, context-aware answers.
Think of RAG as giving AI the ability to "look things up" before answering—just like how you might search through documents or reference materials before responding to a complex question.
A Real-World Scenario: Helping a Doctor with AI
Imagine you're helping an experienced doctor integrate AI into their workflow. This doctor has accumulated 2,000 patient cases over years of practice—each case containing detailed medical records, diagnoses, treatment plans, outcomes, and notes.
The goal is to create an AI-powered system where the doctor can ask questions like:
- "What was the treatment approach for similar cases of diabetes with complications?"
- "Show me cases where patients had adverse reactions to medication X"
- "What were the outcomes for patients with condition Y who received treatment Z?"
The AI should be able to search through all 2,000 cases, find relevant information, and provide accurate answers with proper citations and links to the source cases.
This is exactly what RAG enables. It allows the AI to access and reference the doctor's specific knowledge base (the 2,000 cases) rather than relying only on general medical knowledge from its training data.
How RAG Works: Two Main Sections
RAG operates in two main phases:
- Indexing – Preparing and organizing the data for efficient search
- Retrieval – Finding relevant information and generating answers
Let's explore each phase in detail using our doctor's scenario.

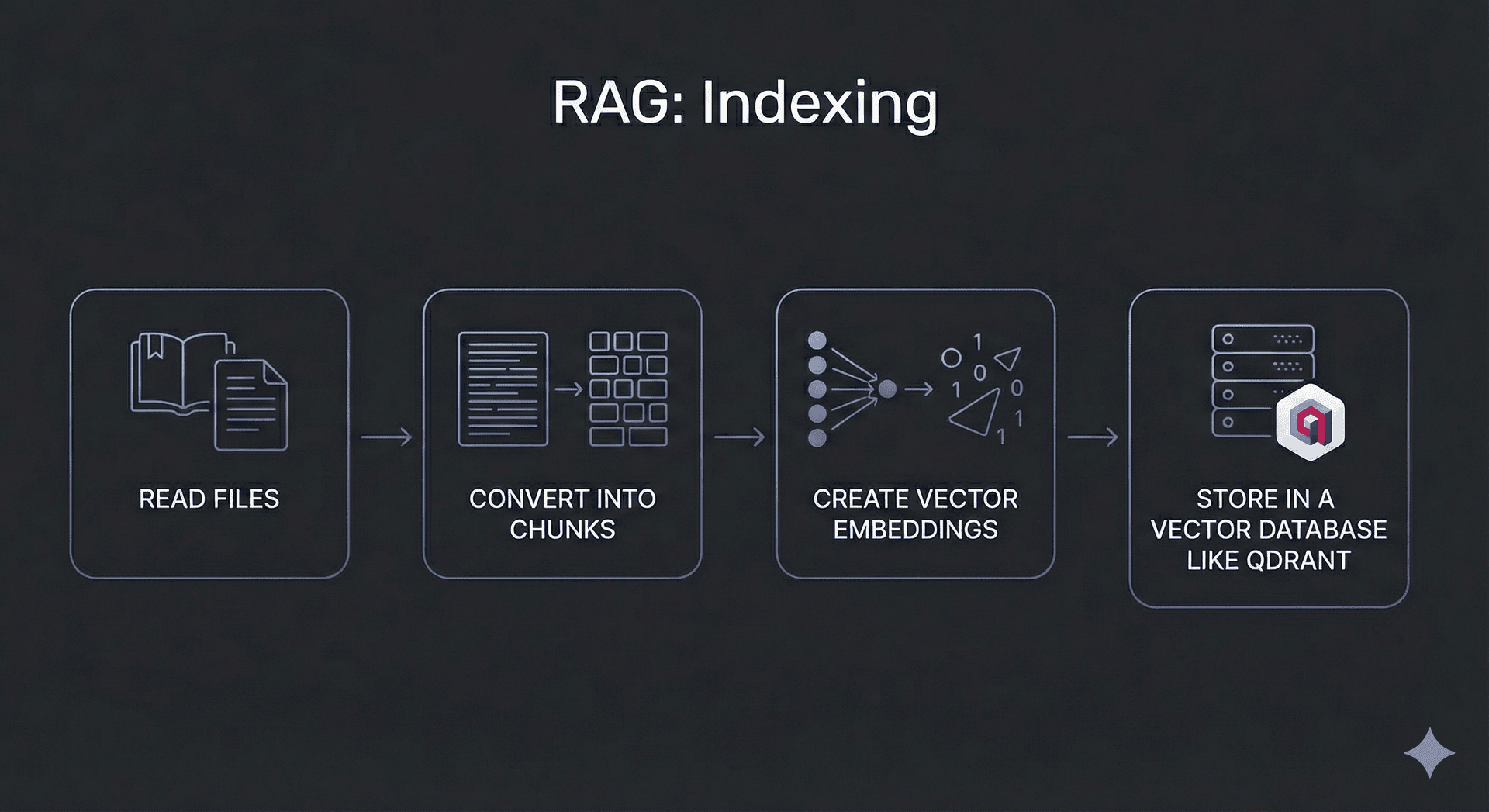

Phase 1: Indexing
Indexing is the process of preparing your data so that it can be quickly and accurately searched later. Think of it like creating a detailed catalog for a library—you organize all the books (documents) so you can find them instantly when needed.
Step 1: Chunking the Documents
The first step is to divide the 2,000 case documents into smaller, manageable pieces called chunks.
Why chunking? Large documents are difficult to process and search efficiently. By breaking them into smaller segments (typically 500–1000 characters each), we can:
- Store and process information more efficiently
- Retrieve only the most relevant sections instead of entire documents
- Improve search accuracy by matching queries to specific content
Example: A 10-page patient case file might be split into 20–30 chunks, each containing a specific section like "Patient History," "Diagnosis," "Treatment Plan," or "Follow-up Notes."

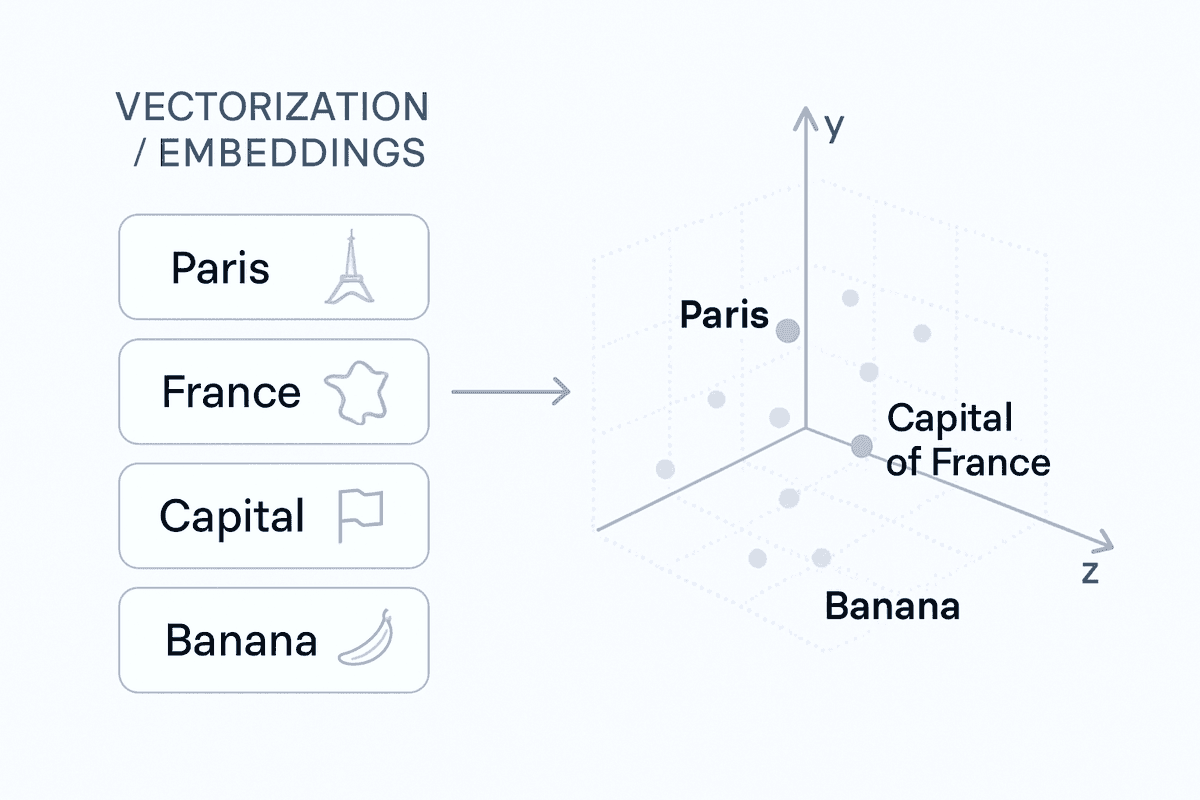

Step 2: Creating Vector Embeddings
Computers don't understand text the way humans do—they work with numbers. Vector embeddings convert text into numerical representations that capture the semantic meaning of the content.
Here's how it works:
- Each chunk of text is converted into a vector (a list of numbers)
- Similar meanings produce similar vectors
- Different meanings produce vectors that are far apart
Example:
- Chunks about "diabetes treatment" will have vectors close to each other
- Chunks about "diabetes treatment" will be far from chunks about "orthopedic surgery"
This mathematical representation allows the system to find semantically similar content, even if the exact words don't match.
Step 3: Storing in a Vector Database
Once we have vector embeddings for all chunks, we store them in a vector database along with their corresponding text chunks. This database is optimized for fast similarity searches.
In our doctor's scenario:
- All 2,000 cases are chunked
- Each chunk is converted to a vector embedding
- Embeddings and their corresponding chunks are stored in the vector database
- The database now contains thousands of indexed chunks ready for search

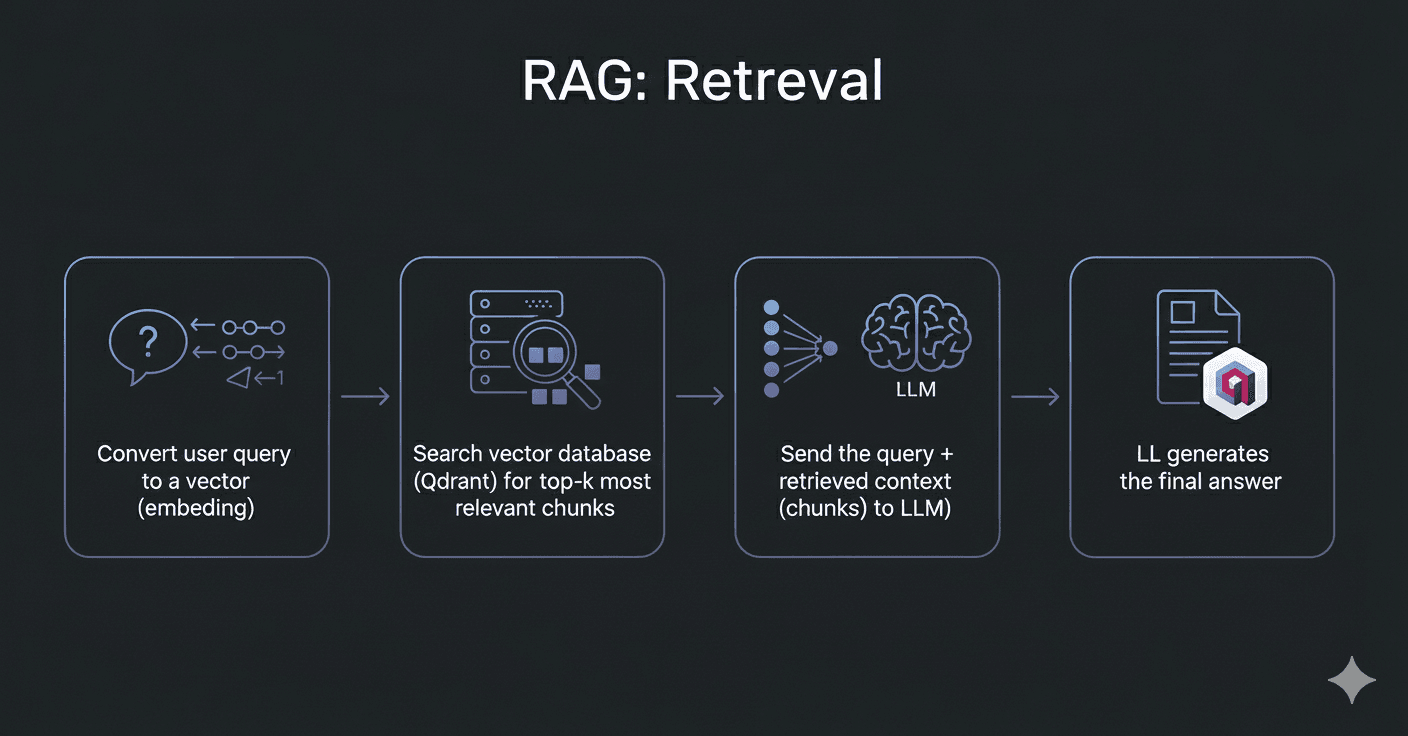

Phase 2: Retrieval
Once the data is indexed, the system is ready to answer questions. The retrieval phase happens every time a user asks a question.
Step 1: Converting the Query to a Vector
When the doctor types a question like "What was the treatment approach for similar cases of diabetes with complications?", the system:
- Converts this query into a vector embedding using the same embedding model used during indexing
- This query vector represents the semantic meaning of the question
Step 2: Searching for Relevant Chunks
The system then searches the vector database to find chunks whose embeddings are most similar to the query vector. This is called semantic search or similarity search.
How it works:
- The system compares the query vector with all stored chunk vectors
- It calculates similarity scores (typically using cosine similarity)
- It retrieves the top N most similar chunks (e.g., top 5 or top 10)
In our doctor's scenario:
- The query about "diabetes treatment" will match chunks from cases that discuss diabetes treatments
- The system might retrieve chunks from 10–15 different cases that are most relevant
- Each retrieved chunk includes a reference to its source case
Step 3: Generating the Answer
The final step is to feed the retrieved chunks along with the user's query into a Large Language Model (LLM). The LLM:
- Reads the relevant chunks (context from the 2,000 cases)
- Understands the user's query
- Generates a natural, human-like answer based on the retrieved information
- Can provide citations and links to the source cases
Result: The doctor receives an accurate answer that:
- Is based on their specific case data
- Includes relevant citations and links
- Provides context from multiple similar cases
- Is generated in natural, readable language
Why RAG Matters
RAG solves critical limitations of traditional AI systems:
- Domain-specific knowledge: The AI can access specialized information (like the doctor's 2,000 cases) that wasn't in its training data
- Up-to-date information: New cases can be added to the index without retraining the entire model
- Accuracy and trust: Answers are grounded in actual documents, reducing hallucinations
- Transparency: Users can see which sources were used to generate answers
Final Thoughts
Retrieval Augmented Generation (RAG) transforms how AI systems interact with knowledge. By combining efficient indexing with intelligent retrieval, RAG enables AI to access vast amounts of domain-specific information and generate accurate, cited answers.
Whether it's helping a doctor search through thousands of cases, enabling a lawyer to query legal documents, or allowing a researcher to explore scientific papers, RAG is revolutionizing how we build intelligent, knowledge-aware AI applications.
As generative AI continues to evolve, RAG will remain a cornerstone technique for building trustworthy, accurate, and context-aware AI systems.
